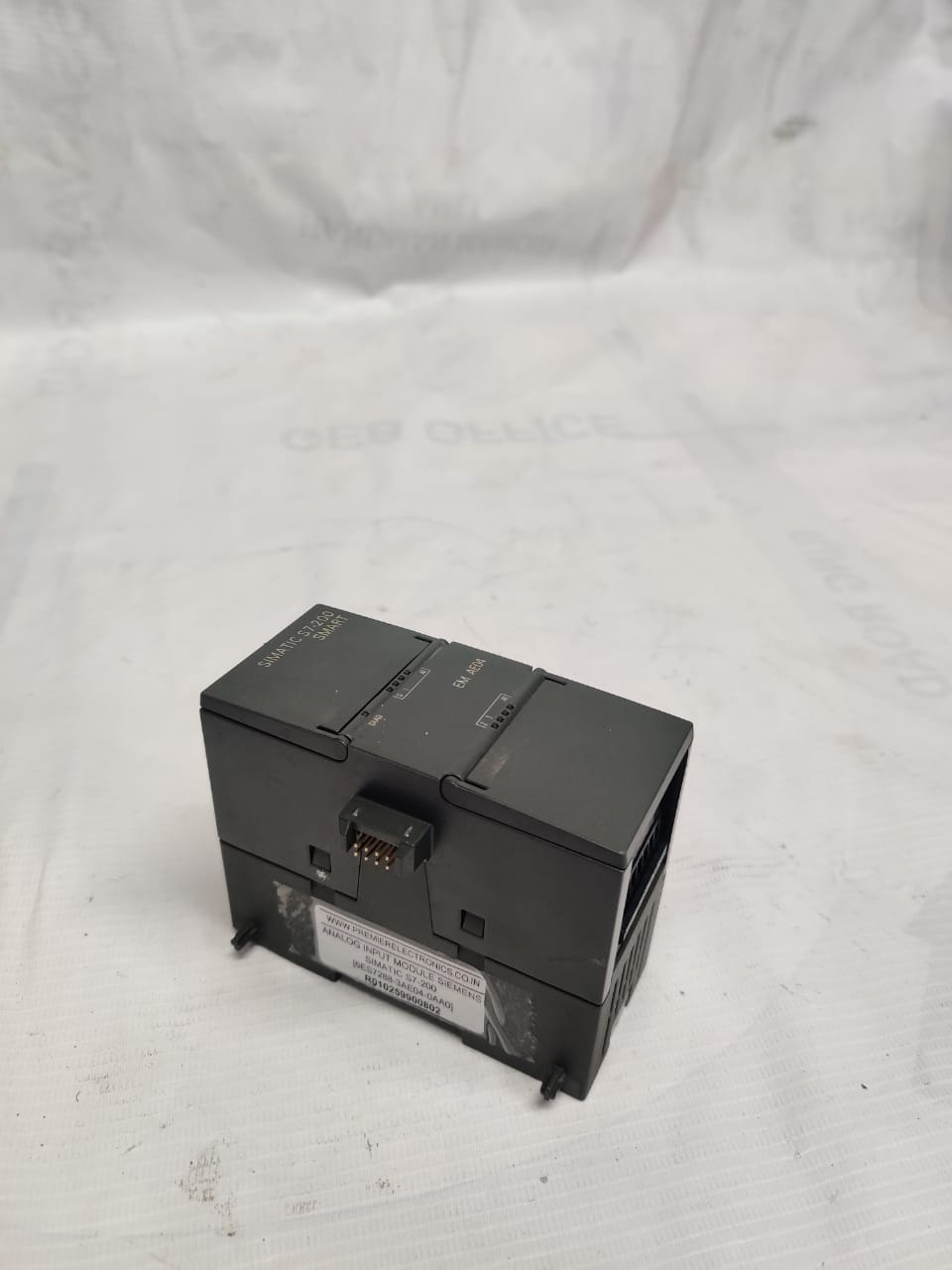

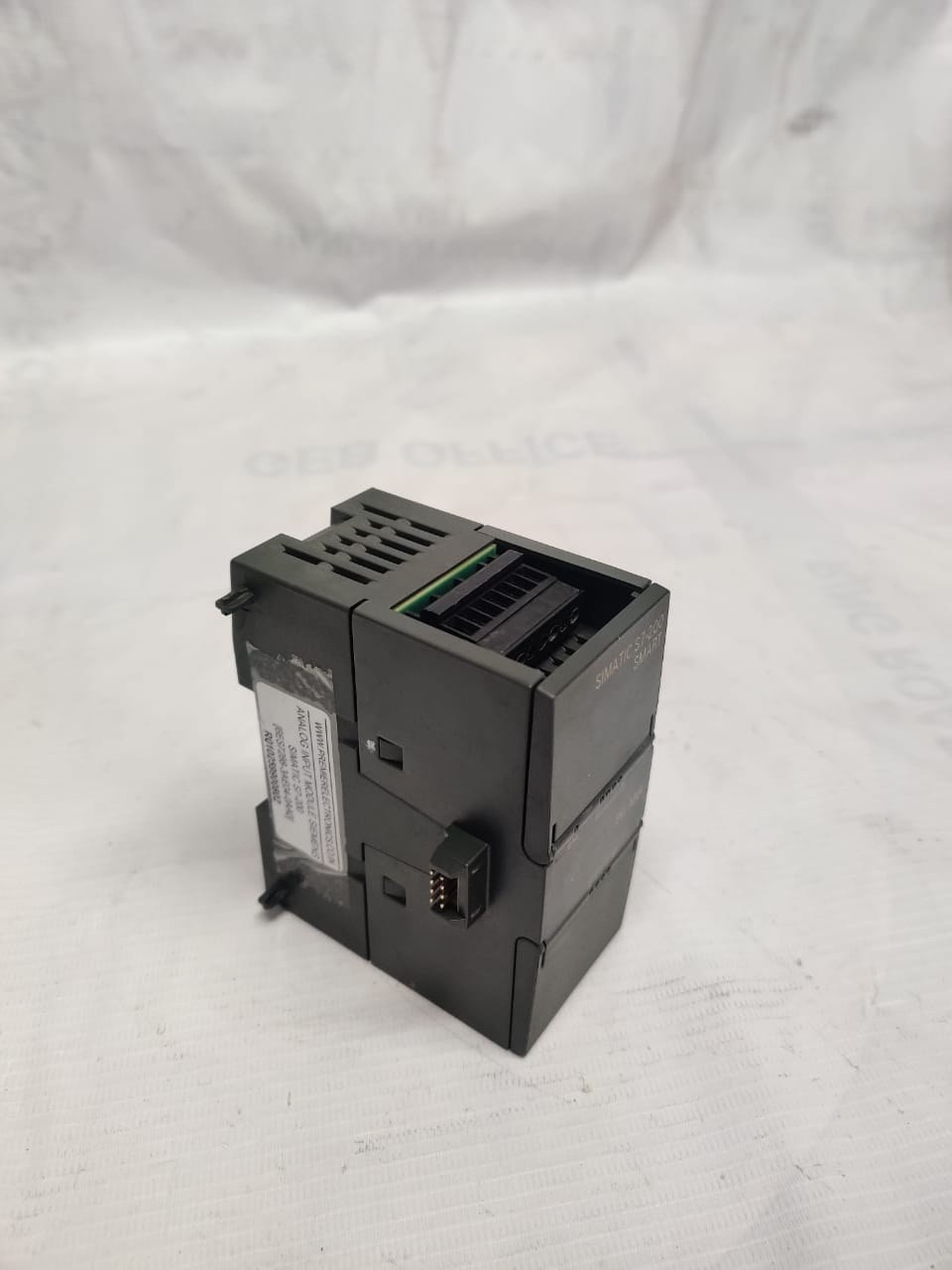

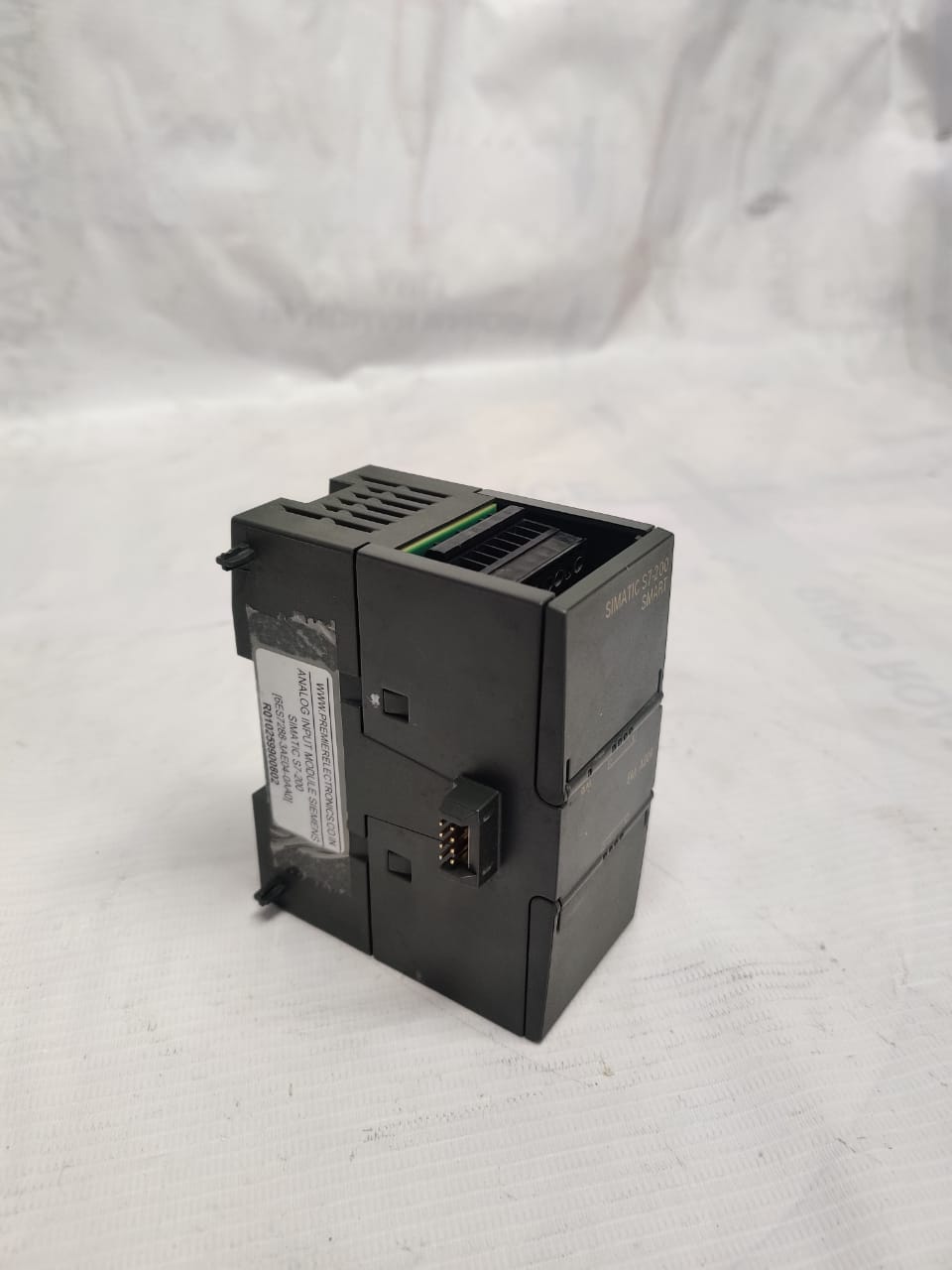

SIEMENS PLC ANALOG INPUT MODULE SIEMENS SIMATIC S7-200 (6ES7288-3AE04-0AA0)
Siemens PLC Analog Input Module – Siemens SIMATIC S7-200 (6ES7288-3AE04-0AA0):
Product Specifications:
– Product Model: Siemens SIMATIC S7-200 Analog Input Module
– Part Number: 6ES7288-3AE04-0AA0
Analog Input Channels:
– Number of Channels: 4 analog inputs
Analog Input Parameters:
– Input Voltage Range: Configurable voltage input ranges (e.g., 0-10V, -10V to +10V)
– Resolution: 12-bit resolution for accurate data conversion
Isolation:
– Isolation Voltage: ≥ 500 V AC between channels and backplane
– Noise Immunity: Isolated channels for improved noise immunity and signal integrity
Input Characteristics:
– Input Impedance: > 1 MΩ
– Input Current: < 1 μA
Sampling Rate:
– Maximum Sampling Rate: 10 kHz per channel
Accuracy:
– Accuracy: ±0.5% of full-scale range
Conversion Time:
– Single Channel Conversion Time: < 1 ms
Power Supply:
– Power Supply Voltage: 24 V DC (supplied by the S7-200 PLC backplane)
Connection:
– Terminal Type: Removable screw terminals for secure connections
– Wire Gauge: Suitable for 0.2 mm² to 2.5 mm² (24-12 AWG) wires
Environmental Specifications:
– Operating Temperature: -25°C to +60°C (-13°F to +140°F)
– Storage Temperature: -40°C to +70°C (-40°F to +158°F)
– Relative Humidity: 5% to 95% non-condensing
Mechanical Specifications:
– Dimensions (HxWxD): 80 mm x 71 mm x 62 mm (3.15″ x 2.80″ x 2.44″)
– Weight: Approx. 120 g (0.265 lbs)
– Mounting: DIN rail mounting according to EN 60715 standard
Electromagnetic Compatibility (EMC):
– EMC Standards: EN 61131-2, Class A
Certifications and Standards:
– Certifications: CE, UL, CSA, RoHS compliant
Software Compatibility:
– Programming: Compatible with Siemens SIMATIC STEP 7 Micro/WIN programming software
Application Areas:
– Suitable for a wide range of industrial applications including process control, measurement, monitoring, and data acquisition.
Upgrade your industrial automation systems with the Siemens PLC Analog Input Module – Siemens SIMATIC S7-200 (6ES7288-3AE04-0AA0). Experience precise analog data acquisition, reliable isolation, and seamless integration into your existing Siemens SIMATIC S7-200 PLC environment. This module is designed to deliver accurate and dependable performance in demanding industrial scenarios, contributing to enhanced process control and efficiency.
Description

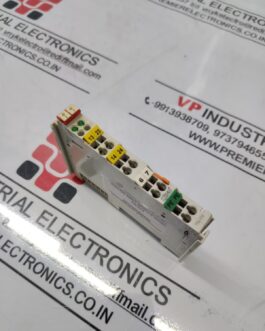

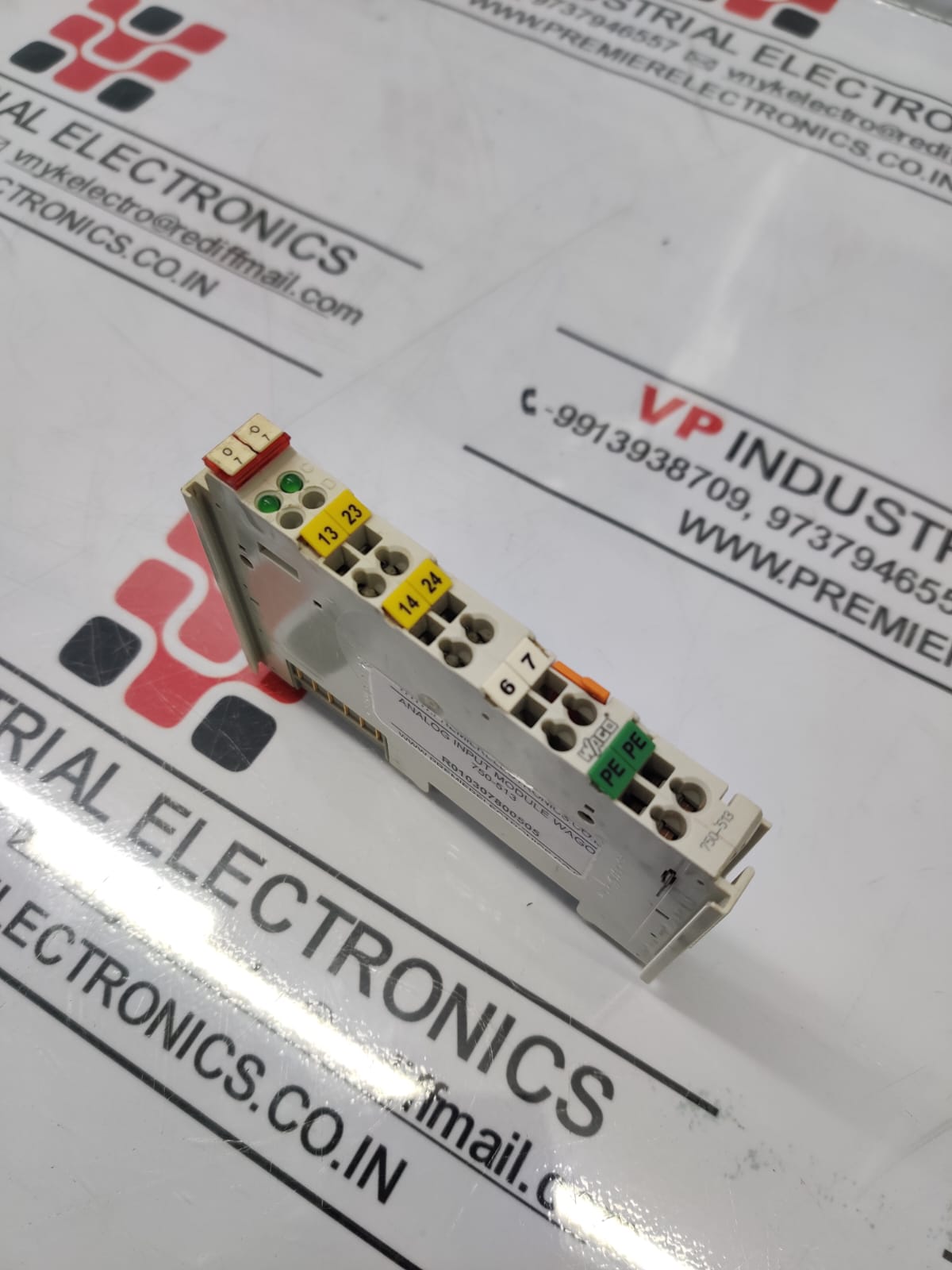

Introducing the WAGO PLC Analog Input Module 750-513 – Your Gateway to Precise Data Acquisition!
Enhance your industrial automation setup with the advanced capabilities of the WAGO PLC Analog Input Module 750-513. Designed to seamlessly integrate into your control system, this module is a reliable solution for precise analog data acquisition, offering unparalleled performance and versatility.
Key Features:
1. Versatile Analog Inputs: The WAGO 750-513 module boasts 4 high-precision analog inputs, each capable of handling a wide range of signal types, including voltage and current signals. This flexibility ensures compatibility with various sensors and devices, making it perfect for diverse industrial applications.
2. High Accuracy: Achieve exceptional measurement accuracy with the 16-bit resolution of the module, allowing you to capture even the most subtle changes in your analog signals. This accuracy is crucial for maintaining process quality and optimizing performance.
3. Isolation Technology: Built-in galvanic isolation ensures signal integrity and eliminates the risk of ground loops and electrical interference. This feature enhances the reliability of your data and promotes safer operations.
4. Easy Configuration: The module’s user-friendly design and intuitive software interface simplify the setup process. Configure input ranges, filtering options, and scaling parameters effortlessly, reducing installation time and minimizing the chance of errors.
5. Fast Data Transfer: With high-speed communication protocols like Ethernet and fieldbus compatibility, the 750-513 module facilitates rapid data exchange between your sensors, controllers, and other automation components.
6. Durable Build: Crafted to withstand demanding industrial environments, this module is built with robust materials that can endure harsh temperatures, vibrations, and shocks, ensuring consistent performance in the face of challenging conditions.
7. Modular Expandability: The WAGO PLC system is known for its modular architecture. The 750-513 module seamlessly integrates into your existing WAGO setup, enabling easy expansion and customization according to your evolving automation needs.
Applications:
The WAGO PLC Analog Input Module 750-513 finds its application across a spectrum of industries:
– Manufacturing: Monitor and control critical process variables, ensuring product quality and consistency.
– Energy Management: Precisely measure electrical parameters, enabling efficient energy consumption and resource optimization.
– Building Automation: Capture environmental data for HVAC systems, enhancing comfort and energy efficiency.
– Material Handling: Monitor load, pressure, and other variables in conveyor and logistics systems, ensuring smooth operations.
Upgrade your Automation System with WAGO 750-513:
Incorporate the WAGO PLC Analog Input Module 750-513 into your automation infrastructure to experience unmatched accuracy, reliability, and ease of use. Elevate your control processes and gain valuable insights into your industrial operations. Streamline data acquisition and enhance decision-making with this exceptional module from WAGO.
Invest in precision and performance – invest in the WAGO 750-513 Analog Input Module. Order now and take a significant step towards optimizing your industrial automation setup.
