SIEMENS POWER CARD AND CONTROL CARD 6RA70 DC DRIVE 400AMP POWER CARD AND CONTROL CARD
Siemens 6RA70 DC Drive Power Card and Control Card:

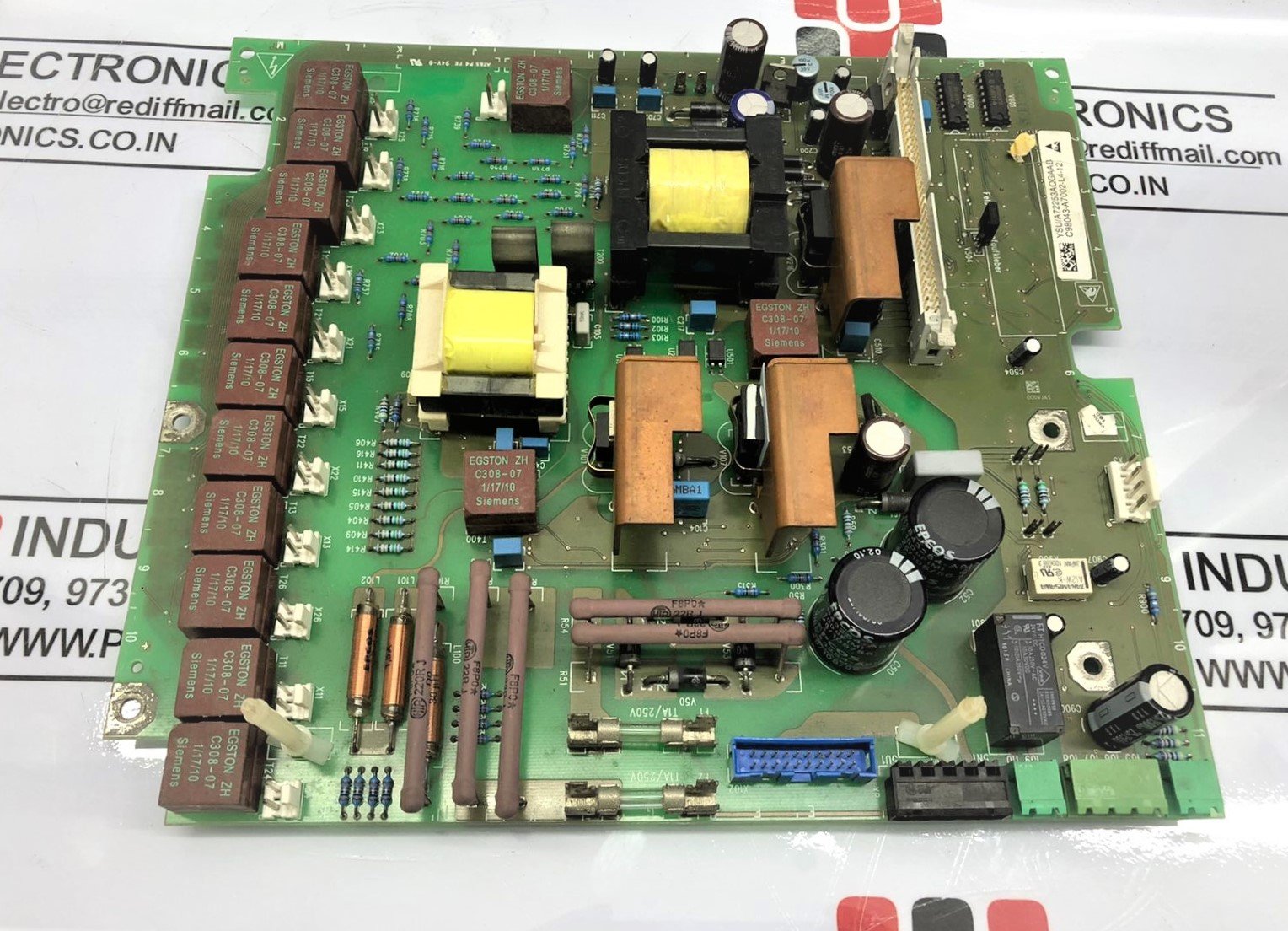

6RA70 DC Drive Power Card – 400Amp:
Electrical Specifications:
– Maximum Current Capacity: 400A
– Input Voltage: 380-480V AC, 3-phase
– Output Voltage: Variable DC Output
– Control Modes: Voltage Control, Current Control
– Overload Protection: Yes
– Short Circuit Protection: Yes
– Voltage Regulation: ±1% of rated voltage
Features:
– Robust construction for industrial environments
– Efficient power conversion and delivery
– Intelligent cooling system to prevent overheating
– Built-in protection against voltage spikes and surges
– Compatible with various motor types and configurations
– User-friendly interface for parameter adjustments

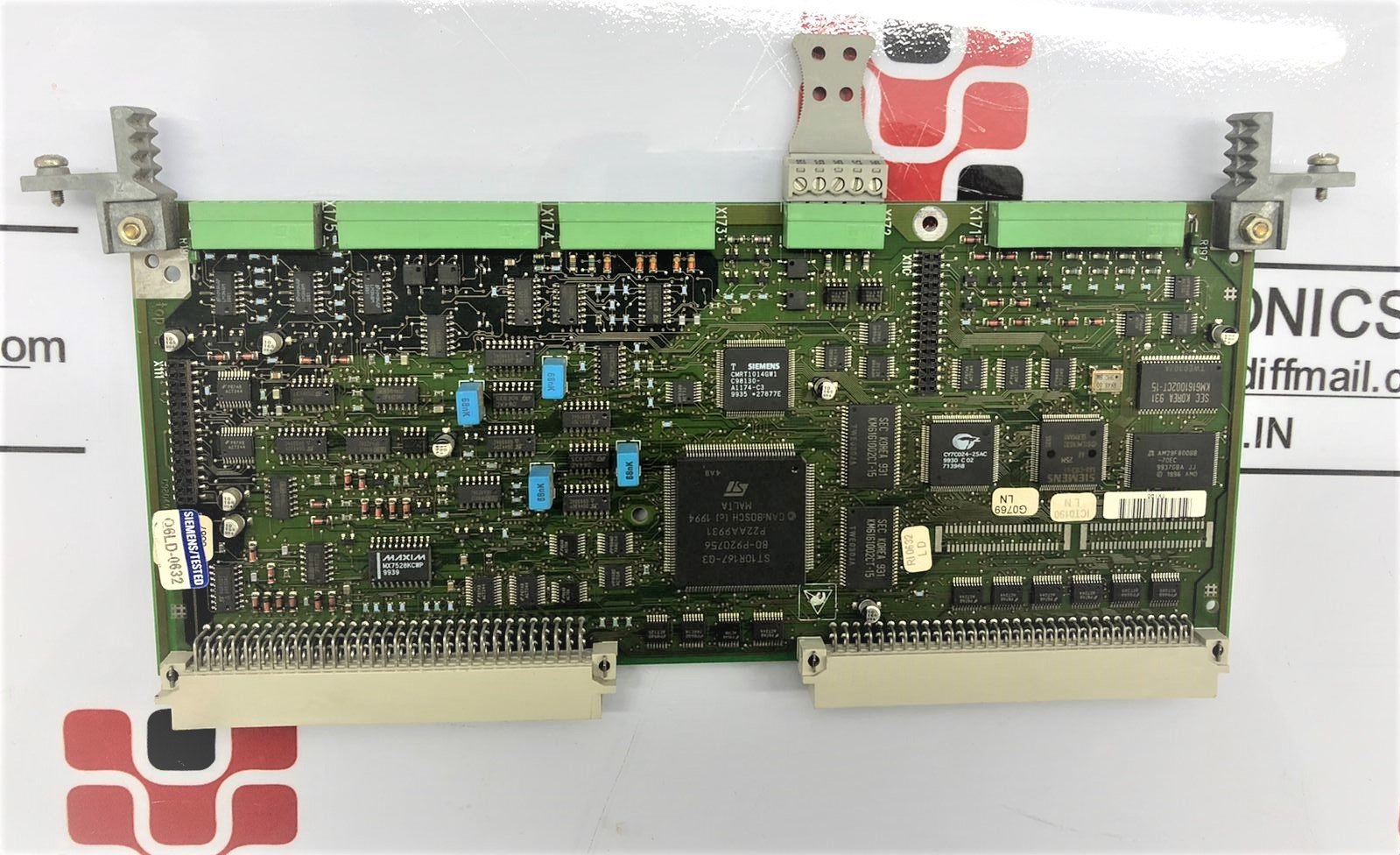

6RA70 DC Drive Control Card:
Control Specifications:
– Control Modes: Open Loop, Closed Loop, Speed Control, Torque Control
– Control Algorithms: Proportional-Integral-Derivative (PID)
– Feedback Options: Analog Feedback, Digital Feedback
– Communication Interfaces: Profibus, Modbus, Ethernet
– Start/Stop Control: External and Internal Control Signals
– Speed Range: Adjustable per application
Features:
– Precise speed and torque control for optimal performance
– Adaptive control algorithms for dynamic response
– Real-time monitoring and parameter adjustments
– Seamless integration with existing control systems
– Advanced diagnostics for fault detection and troubleshooting
– User-configurable settings for specific applications
General Features (Both Power and Control Cards):
– Compact design for easy integration
– Comprehensive user manuals and documentation
– Built-in safety features for protection of machinery and personnel
– Extended operating temperature range for versatile applications
– High-quality components for long-term reliability
– Firmware upgradeability for future enhancements
Environmental and Physical Specifications:
– Operating Temperature: -10°C to 50°C
– Storage Temperature: -20°C to 70°C
– Humidity: 10% to 90% non-condensing
– Dimensions: Varies based on card configuration
– Weight: Varies based on card configuration
– Enclosure: IP20 (Ingress Protection)
Certifications:
– CE Marking
– UL Listed (where applicable)
– RoHS Compliance
Please note that the specifications provided are general guidelines and may vary depending on the specific model and configuration of the Siemens 6RA70 DC Drive Power Card and Control Card. It’s recommended to refer to the official Siemens product documentation or contact their technical support for precise and up-to-date specifications based on your requirements.
Description
Introducing the Siemens Firing Card IGBT 200KW for Unparalleled Efficiency and Control
Upgrade your industrial processes with the cutting-edge technology of the Siemens Firing Card IGBT 200KW. This innovative firing card is designed to deliver exceptional performance, reliability, and efficiency, making it an essential component for various applications, from power electronics to motor drives and beyond.
Key Features:
1. High Power Output: With a remarkable power handling capacity of 200KW, this Siemens Firing Card ensures optimal performance even in demanding industrial environments.
2. Advanced IGBT Technology: Equipped with Insulated Gate Bipolar Transistor (IGBT) technology, this firing card offers high switching speeds and superior power handling capabilities, allowing for precise control over the power flow in your systems.
3. Enhanced Efficiency: The Siemens Firing Card IGBT 200KW is designed to minimize energy losses during operation, leading to increased efficiency and reduced operational costs.
4. Reliable Overload Protection: Built-in overload protection mechanisms safeguard your systems from voltage spikes and overcurrent situations, ensuring prolonged equipment lifespan and minimizing downtime.
5. Integrated Cooling System: The firing card incorporates an efficient cooling system that maintains optimal operating temperatures, even during prolonged high-load usage, thereby enhancing the longevity of the components.
6. Seamless Integration: The compact design and standardized connectors make installation and integration into your existing systems a breeze. Compatibility with various control interfaces adds to its versatility.
7. Comprehensive Monitoring: Monitor crucial performance metrics and operational parameters through integrated monitoring interfaces, allowing you to stay in control and address any issues promptly.
8. Robust Build: Crafted with quality and durability in mind, the Siemens Firing Card IGBT 200KW is built to withstand harsh industrial conditions, ensuring consistent performance over extended periods.
Revolutionize your industrial processes with the Siemens Firing Card IGBT 200KW, and experience unparalleled precision, efficiency, and reliability. Whether you’re looking to enhance motor drives, optimize power electronics, or streamline your operations, this firing card delivers the technology you need to drive your business forward.
Upgrade to Siemens technology today and elevate your industrial systems to new heights of performance.
